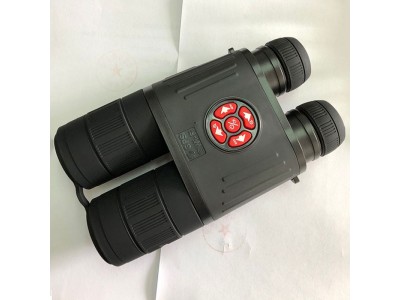

【國內爆款】東帝夜視DAKINGNV-DB1920雙目雙筒數碼夜視儀

產品性能

Product performance：

低照度圖像傳感器Low light image sensor

日夜兩用全天候觀測Day and night dual-use all-weather observation

一鍵開啟錄像或拍照功能One click activation of recording or photography function

WIFI連接手機實現同步觀看和遠程遙控

WIFI connection to mobile phone for synchronized viewing and remote control

流暢的數碼倍率變焦（放大或縮?。㏒mooth digital zoom (zoom in or out)

北斗+GPS復合定位  Beidou+GPS composite positioning

電子羅盤/俯仰角/氣壓計 Electronic compass/pitch angle/barometer

視頻輸出功能 Video output function

圖像亮度調節 Image brightness adjustment

眼距可調節Adjustable eye distance

超寬帶多層增透膜Ultra wideband multilayer anti reflective film

支持4G-128G范圍內的micro SD卡/ Supports micro SD cards in the 4G-128G range

支持多種電源方式 Supports multiple power supply methods

支持安裝三腳架 Support the installation of tripods

產品參數

Product parameters：

型號model

DB1920

傳感器分辨率Sensor resolution

1920x1080

放大倍率Magnification rate

5-30倍連續變倍  5-30 times continuous doubling

視場角度（度，°）（D、H、V分別是對角、水平、垂直三個方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=7.36 H=5.9 V=4.4

焦距focal length

50

眼距范圍Eye distance range

65（+/-5）mm（可調節）(Adjustable)

視度調節范圍（屈光度）Visual adjustment range

+5°/-5°

物鏡直徑Objective diameter

50mm

錄像質量 Recording quality

1920x1080

照片質量 Photo quality

1920x1080

觀察模式Observation mode

晝/夜兩種模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜間模式擋位Night mode gear

1-4擋（N1/N2/N3/N4）

屏幕亮度調節Screen brightness adjustment

支持（1-3擋）Support (1-3 gears)

紅外輔助距離

Infrared assisted distance

1-1000米（根據目標及環境不同有所差異）

1-1000 meters (varies depending on target and environment)

電池種類 Battery type

CR123A（3節）/CR123A（3節）

其他電源方式

Other power supply methods

支持（如充電寶、直流電、車載電源等）

Support (such as power bank, DC, car power supply, etc.)

低電指示Low battery indication

支持support

TF內存卡端口TF memory card port

支持（支持4G-128G）Support (4G-128G supported)

USB端口/USB port

支持support

HDMI視頻端口 HDMI video port

支持support

WiFi連接手機APP

WiFi connection to mobile app

支持iOS & Android (圖像視頻傳輸/遠程遙控)可一對多

Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI連接APP有效距離

Effective distance of WIFI connection to APP

20米內

Within 20 meters

北斗定位Beidou positioning

支持support

GPS 定位 GPS positioning

支持support

電子羅盤Electronic compass

支持support

俯仰角Pitch angle

支持support

氣壓計（氣壓、高度、氣溫）

Barometer (pressure, altitude, temperature)

支持support

聲音記錄Sound recording

支持support

日期記錄Date Record

支持support

語言選擇Language selection

中文、英文Chinese, English

防塵防水等級Protection grade

生活防水Domestic waterproofing

外接三腳架External tripod

支持（1/4螺絲）Support (1/4 screw)

產品尺寸Product size

208X127X59mm

重量weight

850g
