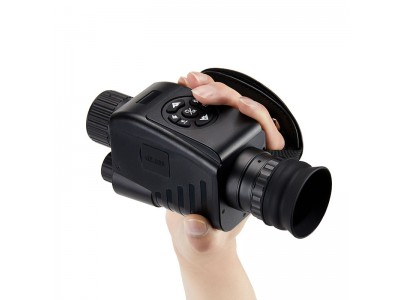

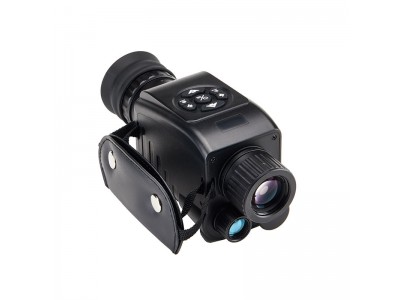

東帝夜視DM1920-3X第6代超高清單筒數碼紅外夜視儀望遠鏡

產品性能

Product performance：

低照度圖像傳感器Low light image sensor

日夜兩用全天候觀測Day and night dual-use all-weather observation

一鍵錄像或拍照One click recording or photography

WIFI連接手機實現同步觀看和遠程遙控

WIFI connection to mobile phone for synchronized viewing and remote control

流暢的數碼倍率變焦（放大或縮?。㏒mooth digital zoom (zoom in or out)

戶外GPS定位Outdoor GPS positioning

圖像亮度的調節Adjusting image brightness

超寬帶多層增透膜 Ultra wideband multilayer anti reflective film

支持4G-128G范圍內的micro SD卡   Supports micro SD cards in the 4G-128G range

支持多種電源方式 Supports multiple power supply methods

支持安裝三腳架Support the installation of tripods

產品參數

Product parameters：

型號model

DM1920-3X

傳感器分辨率Sensor resolution

1600x1600

放大倍率Magnification rate

15-45連續變倍 15-45 continuous doubling

視場角度（度，°）（D、H、V分別是對角、水平、垂直三個方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=10°H=8°V=5°

焦距focal length

50

視度調節范圍（屈光度）Visual adjustment range

+5°/-5°

物鏡焦距Objective lens focal length

50mm

照片質量Photo quality

1920x1080

錄像質量Recording quality

1920x1080

觀察模式

Observation mode

晝/夜兩種模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜間模式擋位Night mode gear

1-4擋（N1/N2/N3/N4）

屏幕亮度調節Screen brightness adjustment

有（1-3擋）yes

紅外輔助距離Infrared assisted distance

1-500米（根據目標及環境不同有所差異）

1-500 meters (varies depending on target and environment)

電池種類Battery type

18650鋰電池（1節）/18650 lithium battery (1 unit)

電池電壓范圍Battery voltage range

2.6-4.2V

其他電源方式

Other power supply methods

支持（如充電寶、直流電、車載電源等）

Support (such as power bank, DC, car power supply, etc.)

低電指示Low battery indication

有yes

TF內存卡端口TF memory card port

有（支持4G-128G）Yes (supports 4G-128G)

USB端口 USB port

有Yes（Type-C）

WiFi連接手機APP

WiFi connection to mobile app

支持iOS & Android (圖像視頻傳輸/遠程遙控)可一對多Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI連接APP有效距離

Effective distance of WIFI connection to APP

20米內

Within 20 meters

GPS

有Yes

電子羅盤Electronic compass

有Yes

氣壓計Barometer

有Yes

俯仰角&水平角Pitch angle&horizontal angle

有Yes

聲音記錄Sound recording

有Yes

日期記錄Date Record

有Yes

語言選擇Language selection

中文、英文Chinese, English

防塵防水等級Protection grade

生活防水Domestic waterproofing

外接三腳架External tripod

支持（1/4螺絲）

產品尺寸Product size

154X63X80mm

重量weight

342g
